8 Advantages of 3Kw/6KW Outdoor IP66 Inverter VS Typical 6kw Inverter

8 Advantages of 3Kw/6KW Outdoor IP66 Inverter VS Typical 6kw Inverter



Aspect Calion IN-SL-3KW/6KW (IP66 Outdoor) Typical 6 kW Indoor IP21 Inverter Outdoor-unit edge in one sentence
Installation site IP66, –30 °C to +60 °C, wall/pole mount outdoors IP21, must go in a ventilated indoor room or dedicated cabinet Eliminates plant room, HVAC and extra floor space
MPPT channels 2 independent MPPTs, 16 A / 9 kW-class each, 150 % DC oversizing allowed Usually 1–1.5 MPPTs, max 110–130 % oversizing Higher yield on split-orientation or partially-shaded roofs
Battery & EPS Li-ion & Lead-acid ready, 100 A charge-discharge, <10 ms EPS switch-over Most models have no battery port or need a separate storage unit One box covers grid-tie, backup and storage; no add-on cost
System Scaling Up to 6 units plug-and-play parallel Needs extra parallel kit or external combiner Future expansion is tool-less and cheaper
Safety & O&M DC+AC Type-II SPD, reverse-polarity, I-V curve scan, optional AFCI Basic SPD only, no arc-fault or string diagnostics Faster fault location, lower fire risk, fewer site visits
Service access IP66 sealed—remote diagnostics, no door to open Indoor cabinet must be opened for every check Cuts truck rolls and OPEX
Peak power 6 kVA rated, 7.5 kW/10 s peak 6 kVA rated, ~6.6 kW/5 s peak Handles motor surges without tripping
Global certifications CE, VDE-AR-N 4105, AS/NZS 4777, NRS 097, etc. Usually single-country listing Ready for domestic or export projects

Bottom line: Choosing the Calion outdoor unit means no plant room, fewer balance-of-system parts, higher energy harvest, and lower lifetime maintenance—ideal for residential or light-commercial sites with complex roofs, storage needs, or future expansion plans.

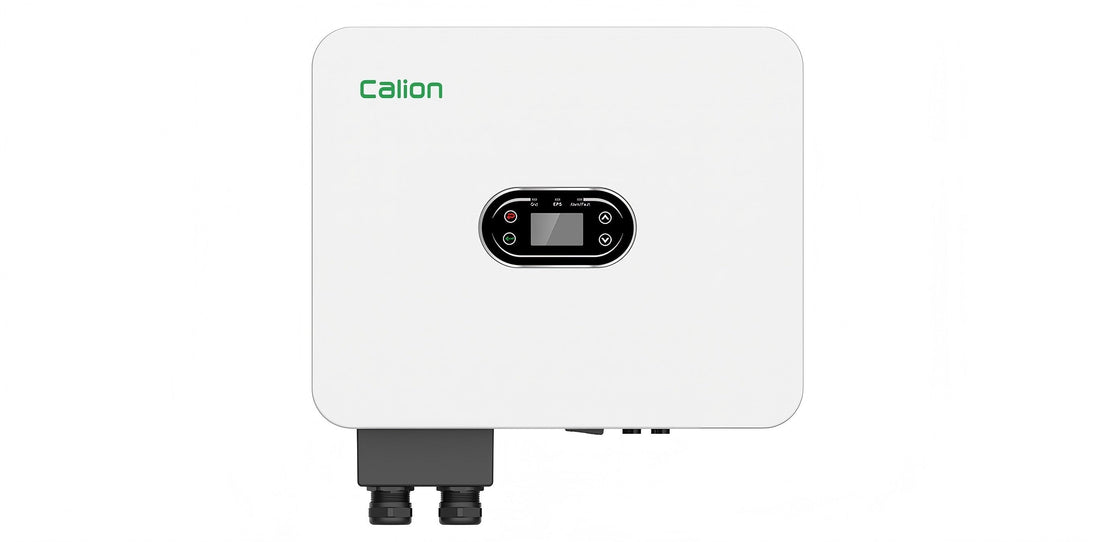

The Calion IN-SL-6KW is an IP66-rated 6 kW single-phase hybrid inverter built for outdoor use. Against common 6 kW indoor units, its core edges boil down to four one-liners:
Outdoor adaptability: IP66 and –30 °C to +60 °C turn the indoor model’s “must mount in a utility room/garage” rule into “just hang it on any outside wall.”


MPPT count: two independent trackers, each 16 A / 9 kW-class, out-flex the typical 1–1.5 trackers found indoors, letting split or dual-aspect roofs hit a full 150 % DC oversizing in one shot.
Feature stretch: built-in EPS (<10 ms switchover), dual-chemistry battery support, and plug-and-play parallel expansion—indoor models usually demand extra EPS boxes or parallel kits.
O&M safety: I-V curve scanning, Type II AC/DC SPD, reverse-polarity protection, and optional AFCI turn “send a tech inside” into “machine self-diagnoses and resets remotely.”
Bottom line: treat it as the outdoor “6 kW Pro Max”—no plant room, no extra cabinets, lower future upgrade costs, and higher yield plus safety headroom.
